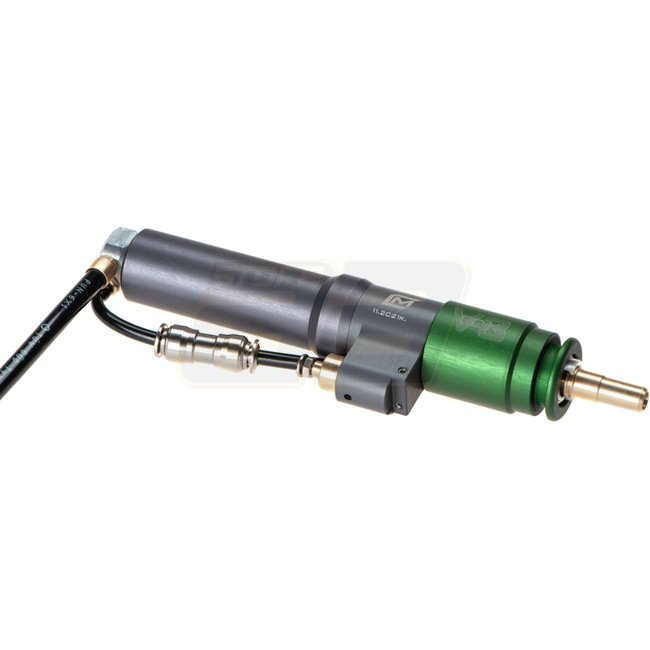

Mancraft PDiK V3

The conversion kit is designed for sniper rifles where long range and precision shots are required.

Mechanics:
The conversion kit has an independently moving nozzle - just like in the AEG rifles. The position of the nozzle is not directly linked to the position of the gas supply element. This solution ensures that the nozzle remains stationary in the hop-up chamber when firing with the conversion kit. This gives you the best stability, sealing and shooting precision.
PDiK works in semi-automatic mode. This is the only mode available in the conversion kit.
The conversion kit is largely adapted to the needs of the sniper. Since it is possible to achieve quite high fps, there is no automatic mode.
When using the appropriate regulator, it is possible to achieve very stable, high fps. The power is adjusted by the regulator. The operating pressure is in the range of 7-16 bar (100-230 PSI).

Construction:
The conversion kit is sold with a specially modified V3 AEG gearbox. The gearbox housing: Jing Gong (JG) 6 mm / Specna Arms – standard gearbox. Gearboxes are black or silver (random).

Advantages:
- No electronics (weather resistance)
- No batteries
- Precision of FPS
- No full automatic mode
- Adjustable FPS
- Compatible with standard AEG parts (nozzle, trigger, selector plate)
- External power supply (many shots)
- Instant response to the trigger

Disadvantages:
- No full automatic mode
- External supply of compressed air from a bottle

Examples of speed (barrel length 550 mm, bullet 0.2 g):
8 bar – 150 m/s (492 fps)
10 bar – 165 m/s (541 fps)
12 bar – 182 m/s (597 fps)
16 bar – 203 m/s (666 fps)
18 bar – 213 m/s (699 fps)

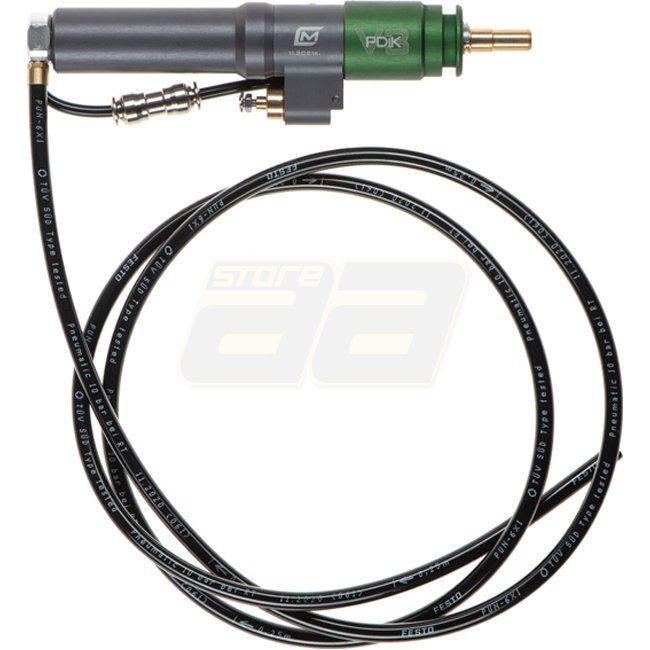

Set contains:
- PDiK V3 (for V3 gearbox)
- Over 1.2 m inlet hose (e.g. 6 mm)

Not included in the kit:
- Trigger
- Trigger lock
- Selector plate

Requires modification of the gearbox
