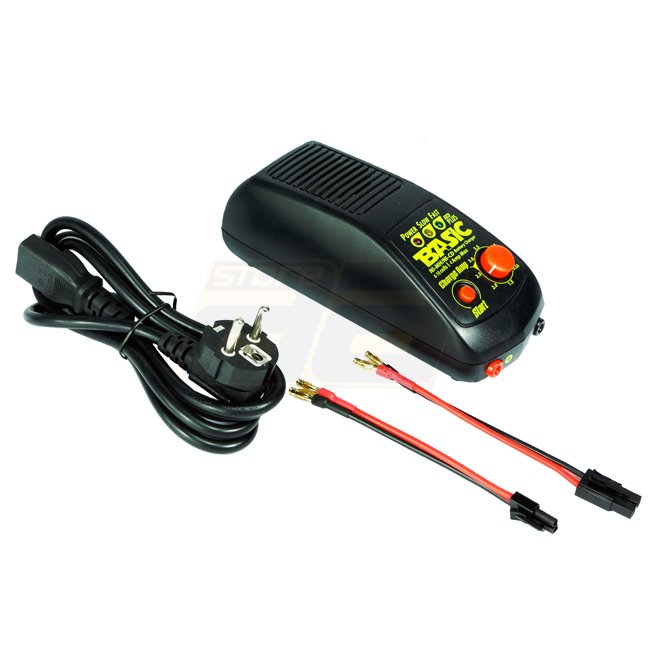

BOL Basic Plus Charger

MOSFET control for peak detection. Pulsation charge method to prevent overcharge and overheat
Ni-MH battery charging with zero delta voltage technology without using thermo detection probe
Auto-Detect switching charge mode for Ni-CD and Ni-MH battery
Front panel with START button to start charging and jog dial to select charging current
0.5A-4.0A Charging Current
Slow / Fast Charging Modes
LED status display
Auto-Detect cell number of battery pack
4mV / cell Voltage Threshold for Ni-CD / Ni-MH Battery
Reverse polarity protection
100-240AC input
4cm cooling fan


Function:

1. Plug in the charger with the main power cable
2. "Power" will light up (red LED)
3. Connect the Ni-MH/Ni-Cd battery with the charger; "Slow" will light up (yellow LED)
4. Set charge current using knob "Charge amp " (= +/-battery capacity)
5. Push the "Start" button to begin the charging process
6. When "Slow" is lit the charging is completed

Important: To prevent Ni-MH/Ni-Cd batteries lose power, they should be fully discharged before recharging.
